New TShP-0.66 Busbar Current Transformer Range

EUROPEAN MANUFACTURERS’ EQUIVALENTS

Included in the State Register of Measuring Instruments of the Republic of Belarus; inclusion in the registers of the Russian Federation, the Republic of Kazakhstan, and the Republic of Uzbekistan is scheduled for 2026.

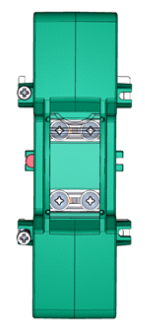

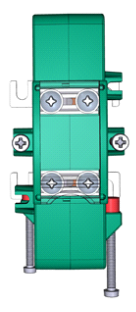

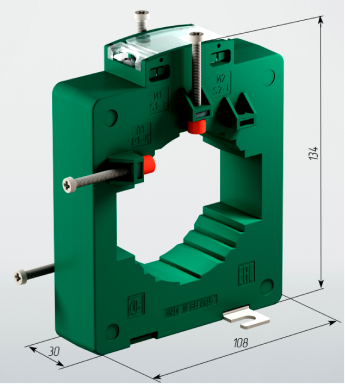

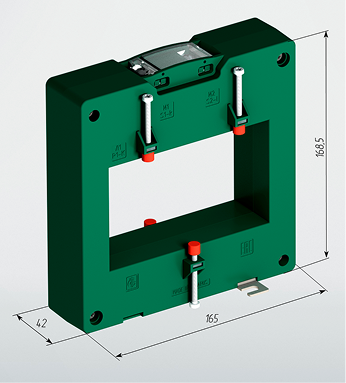

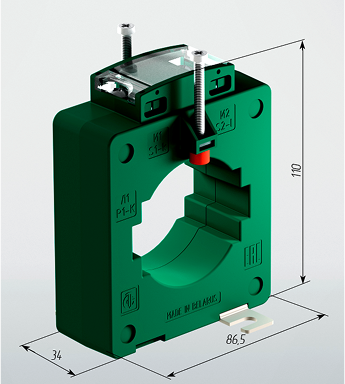

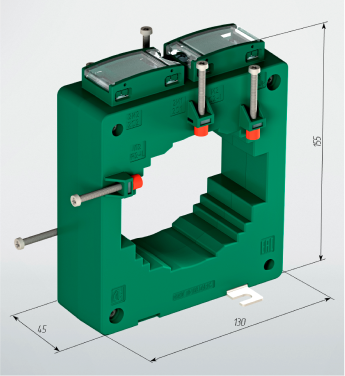

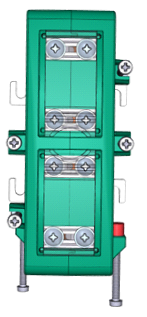

Busbar current transformers TShP-0,66-60	Busbar current transformers TShP-0,66-80	Busbar current transformers TShP-0,66-100	Busbar current transformers TShP-0,66-120
I1 100-1600 A	l1 125-2500 A	l1 150-3000 A* *(including 2-coil versions)	l1 200-5000(6000) A
l2 5A; 1A
Accuracy class 0.2S, 0.5S, 0.5, 1.0
1-50 VA	1-40 VA	1-50 VA	1-50 VA
Window diameter 52 mm	Window diameter 68 mm	Window diameter 82 mm	Window size 72×122 mm
Busbar 60×12,5; 50×10×2	Busbar 80×12,5×2; 60×16×2; 50×20×2; 10×70	Busbar 100×12,5×2; 80×12,5×З; 80×15×2; 70×12, 5×3; 70×25×2; 60×25×3; 60×10×4; 12,5×80×2	Busbar 120×10×4 120×8×5; 120×12,5×4; 100×12,5×4; 100×10×4; 100×8×5
Maximum operating voltage, kV 0,72
Dielectric breakdown test voltage, kV 3,0
Dimensions W×H×D, mm
86,5×110×34 (52)	108×134×30 (48)	130×155×45 (63)	165,3×168,5×42 (60)
