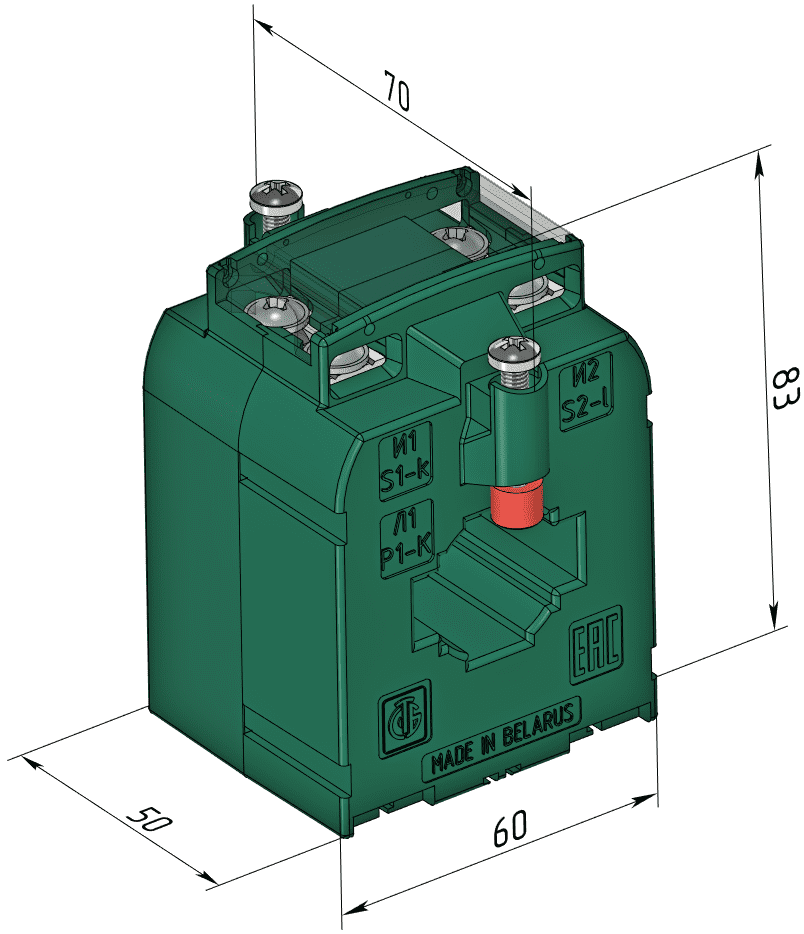

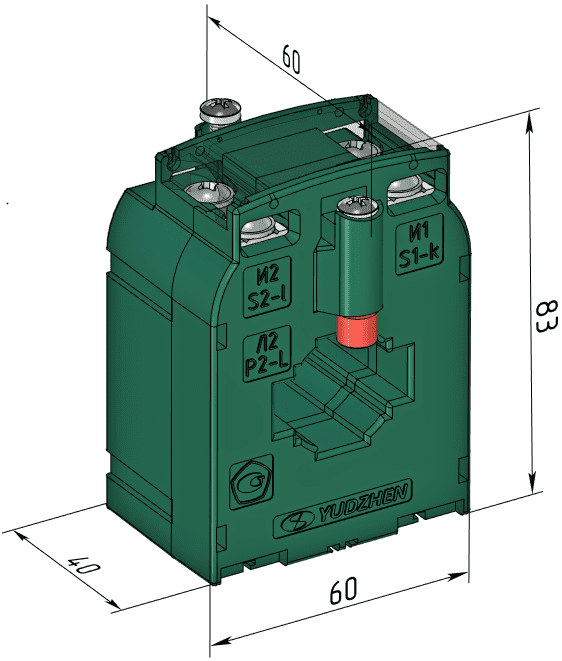

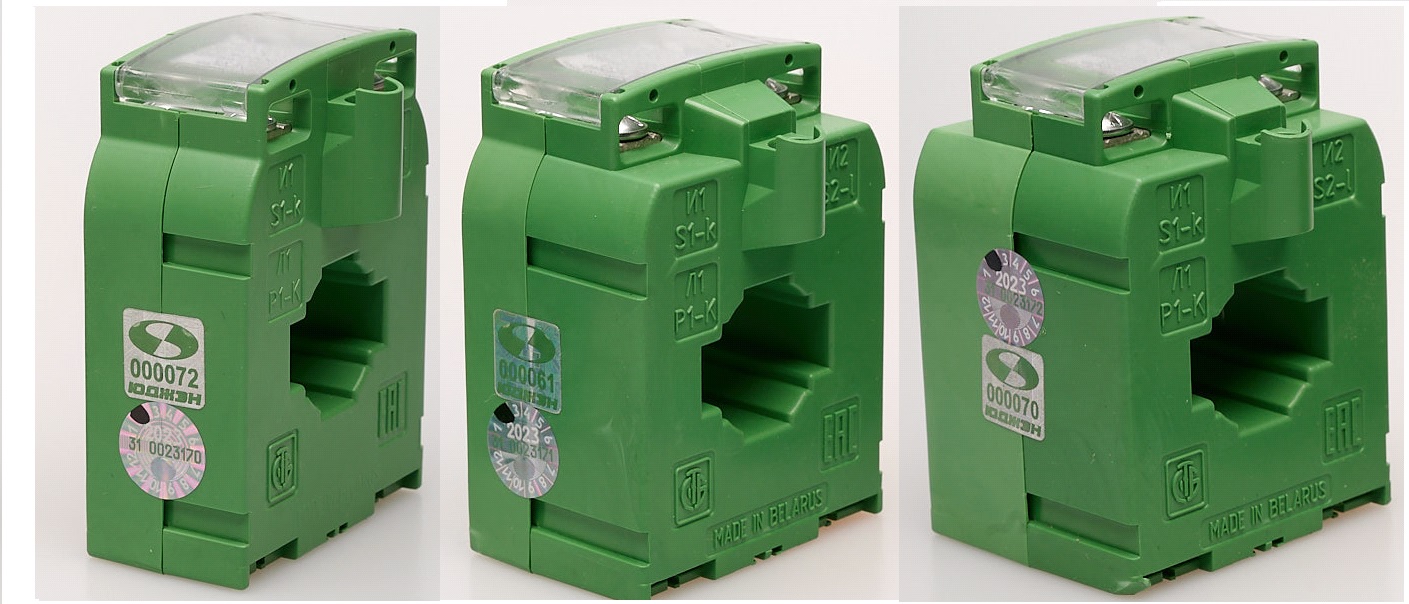

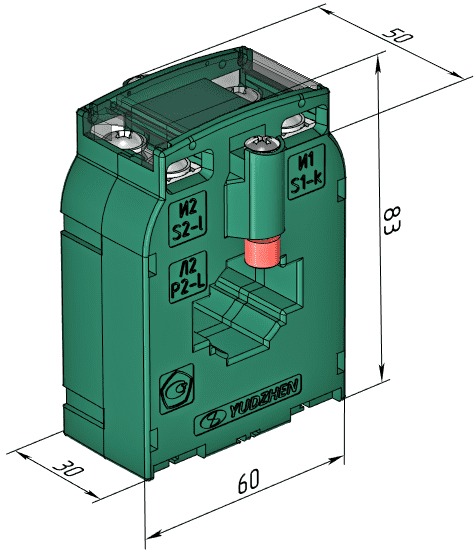

TShP-0.66 M30, M40 and M50 Current Transformers
New product from YUKON RU LLC, Belarus: compact busbar-type instrument current transformers.
Import-substitution solution equivalent to European models, designed for installation in 100 mm-wide fuse-switch feeders and other confined spaces used for commercial electricity metering.
Rated primary/secondary current, A: 30/5, 50/5, 60/5, 75/5, 80/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 750/5, 800/5
Rated secondary burden at cos φ = 0.8: 3–30 VA
Accuracy class: 0.2S, 0.5S, 0.5
Highest operating voltage: 0.72 kV

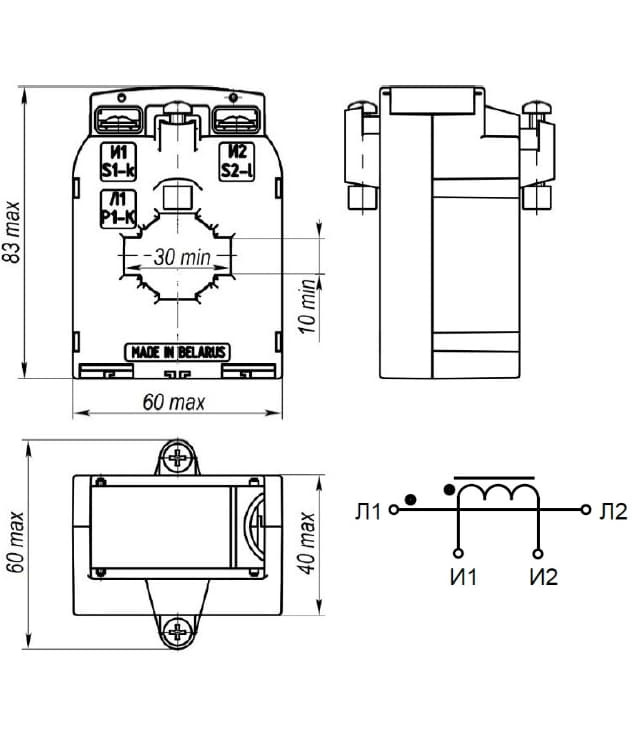

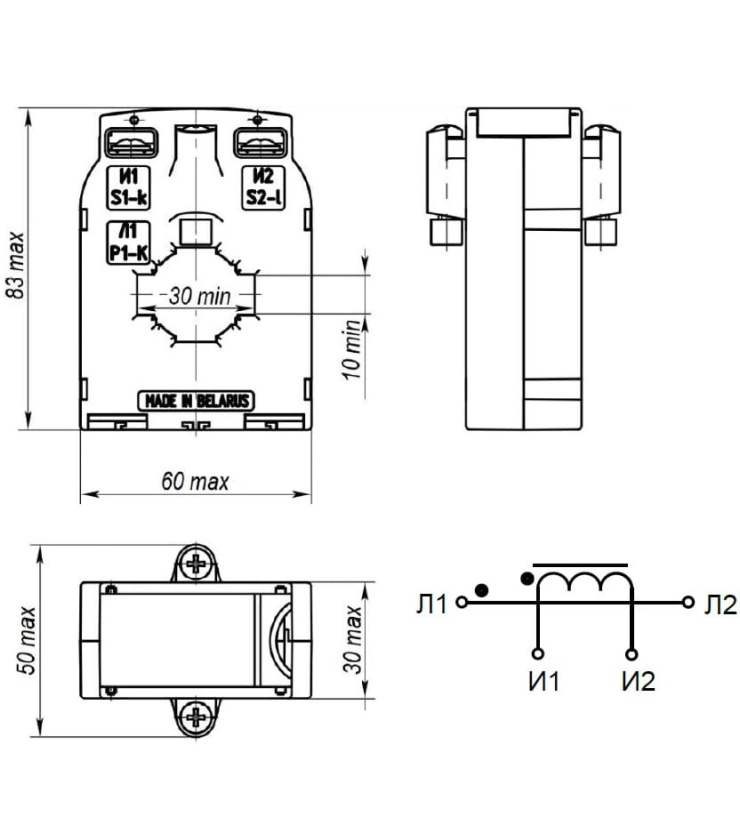

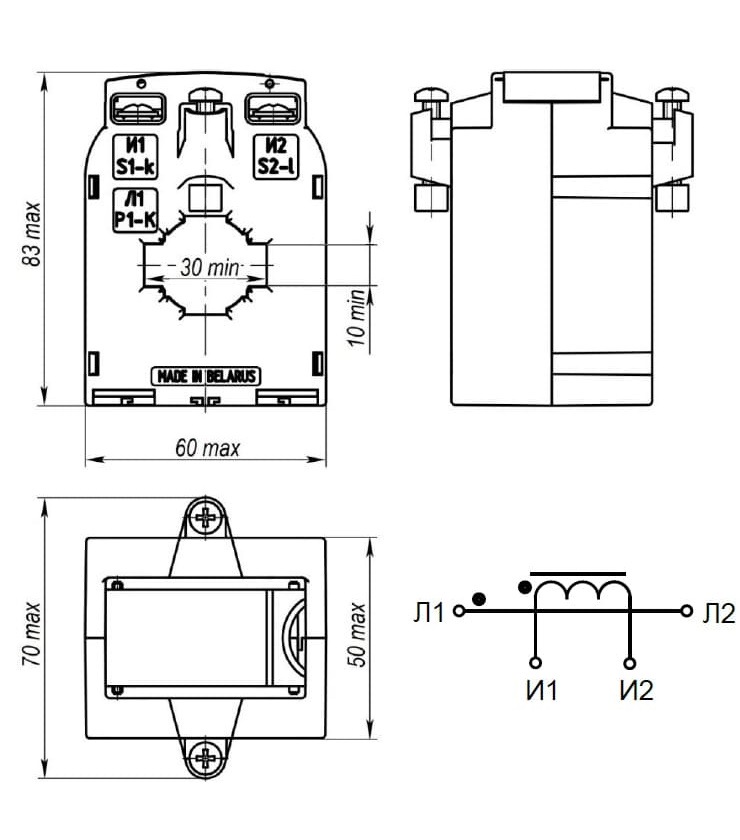

Busbar window sizes: 30 × 10 mm, 20 × 15 mm, 25 × 10 mm; round opening diameter: 24 mm
Included in the State Registers of Measuring Instruments of the Republic of Belarus, the Russian Federation, the Republic of Kazakhstan and the Republic of Uzbekistan.
Technical selection assistance:
Belarus: +375 29 555 41 81 — Viber, WhatsApp.
Russian Federation: +7 958 581 24 25 — Telegram.
Prices are quoted individually.
YUKON RU, Belarus — manufacturer of wound electrical components since 1993. Watch the video
Current Transformer Selection by Parameters
Interchangeable equivalents to compact busbar current transformers with a 60 mm housing length: CIRCUTOR (TCH 6, TCH 6.2), FRER (TAC03), ABB (CT3, CT4). DEKraft (TShP-0,66-30 0,5), Phoenix Contact (PACT MCR-V2-3015-60), SchneiderElectric (METSECT5MA0khkhR), MBSAG (EASK 31.3, EASK 31.4, ASK 31.3), EFEN (PSA 313, PSA 113, PSA 315, EPSA 315, PSA 115), Ritz Instrument transformers Gmbh (KS60-03). Eleron (MAK-ru 45/20, MAK-ru 62/30), DKC (CT30, CT40).
Upon request, we verify compatibility and select equivalent products.
Pochemu my
Сертификаты продукции
TShP-0.66 M30, TShP-0.66 M40 and TShP-0.66 M50 Instrument Current Transformers. Russian Federation Measuring Instrument Type Approval Certificate No. 88500-23.
